Meade LX85 6-inch Reflector OTA only

Wide-field views for the deep-sky observer and astrophotographer.

Optical Tube Assembly (OTA)
Aperture: 150mm (6")
Focal Length: 750mm (f/5)
Parabolic primary mirror
9.7mm & 26mm Super Plossl Eyepieces
8x50 Optical Viewfinder with Crosshair
UK warranty

Meade LX85 6-inch Reflector OTA only

Product code: 217021
Availability: Not in production
Not available
Original Price: £

Shipping rates: England & Wales

£ 20.00

Scotland Central & South

£ 20.00

Scotland North

£ 40.00

Northern Ireland

£ 40.00

UK islands (from)

£ 40.00

European Union (from)

£ 30.00

Worldwide (from)

£ 80.00

Description

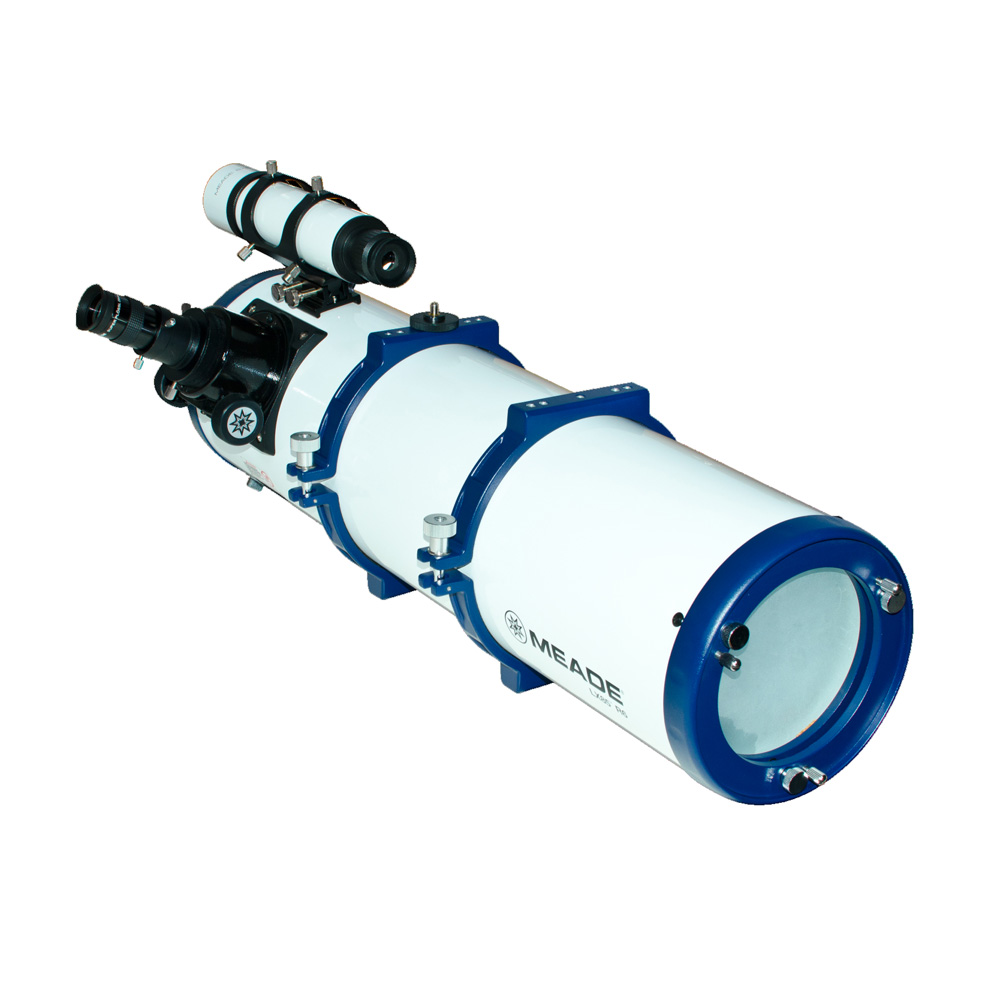

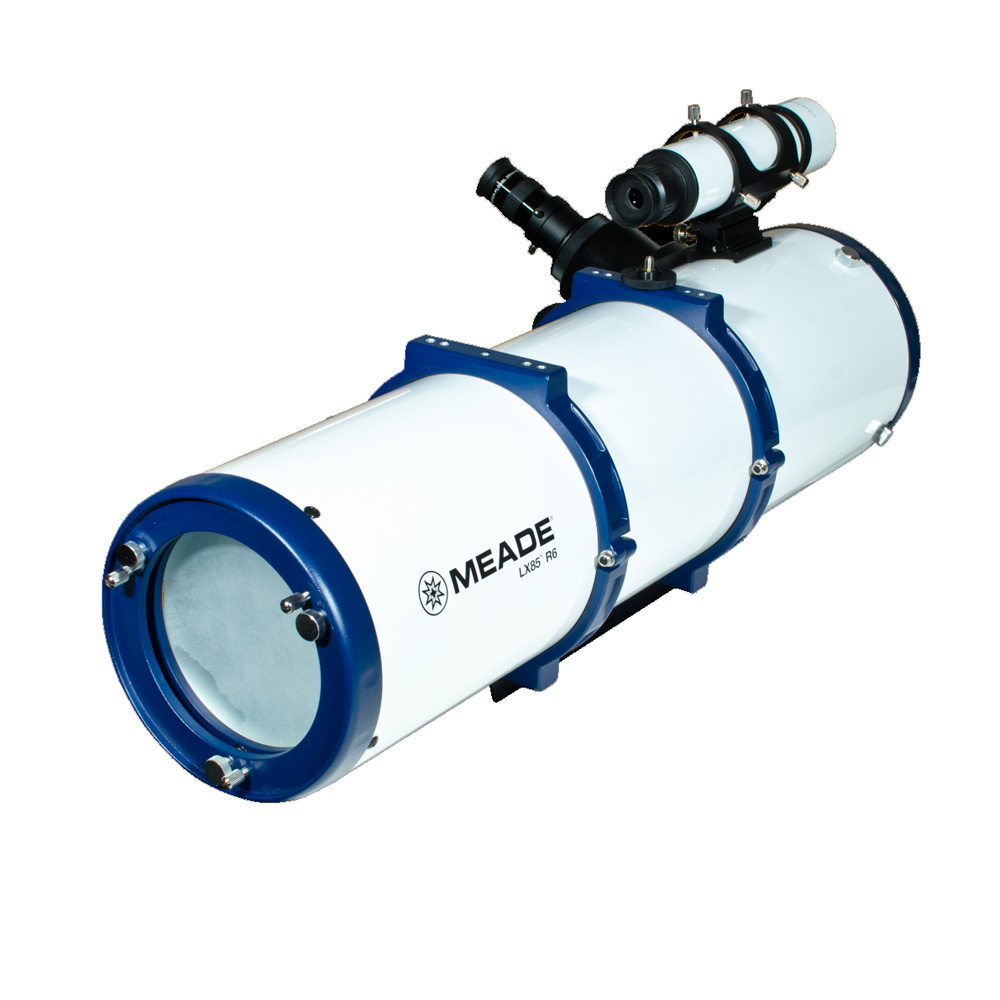

The LX85 Series 6" Reflector has a Newtonian Reflector with parabolic primary mirror optical design and features a 6" (150mm) aperture, 750mm focal length, and f/5 focal ratio. This f/5 optical system provides spectacular wide-field images for the discriminating deep-sky observer and astrophotographer.

Equipped with a 2" rack & pinion focuser and aluminum with SiO2 optical coatings. Includes (2) 1.25" Plossl eyepieces (9.7mm & 26mm) and a viewfinder (8x50 optical with crosshair) along with a vixen-style dovetail. With included accessories, the optical tube assembly (OTA) weighs 5.2kg (11.38 lbs) and has dimensions of Ø=19cm x 70cm (Ø=7.4" x 27.6").

Carries full one year UK warranty by Opticstar Ltd on behalf of Meade Instruments Corp.

U.K. WARRANTY

INTERMEDIATE

PHOTOGRAPHY

ASTRONOMY

▼ show specification ▼

Meade LX85 6-inch Reflector OTA only
Attribute	Specification
Meade Product Code / sku	217021
Universal Product Code (UPC)	709942999204
Warranty	1 year UK warranty by Opticstar Ltd on behalf of Meade Instruments USA
Series	LX85
Experience Level	Intermediate
Clear Aperture	150mm (6-inch)
Focal Length	750mm
Focal Ratio	f/5
Optical Design	Newtonian Reflector
Primary Mirror	Parabolic
Optical Coatings	Aluminium with SiO2 Coating
Focuser	2" Rack & Pinion
Dovetail	Vixen-style
Eyepieces	Two (2) eyepieces: • Meade Series 4000™ Super Plossl 9.7mm, 1.25" • Meade Series 4000™ Super Plossl 26mm, 1.25"
Viewfinder	8x50mm optical with crosshair
Mount / Tripod	not included
Optical Tube Weight	5.2kg (11.38 lbs)
Optical Tube Dimensions	Ø=19cm x 70cm (Ø=7.4" x 27.6")
Transit Weight	9 kg (18.3 lbs)
Transit Dimensions	88cm x 31cm x 32cm

▲ hide specification ▲
