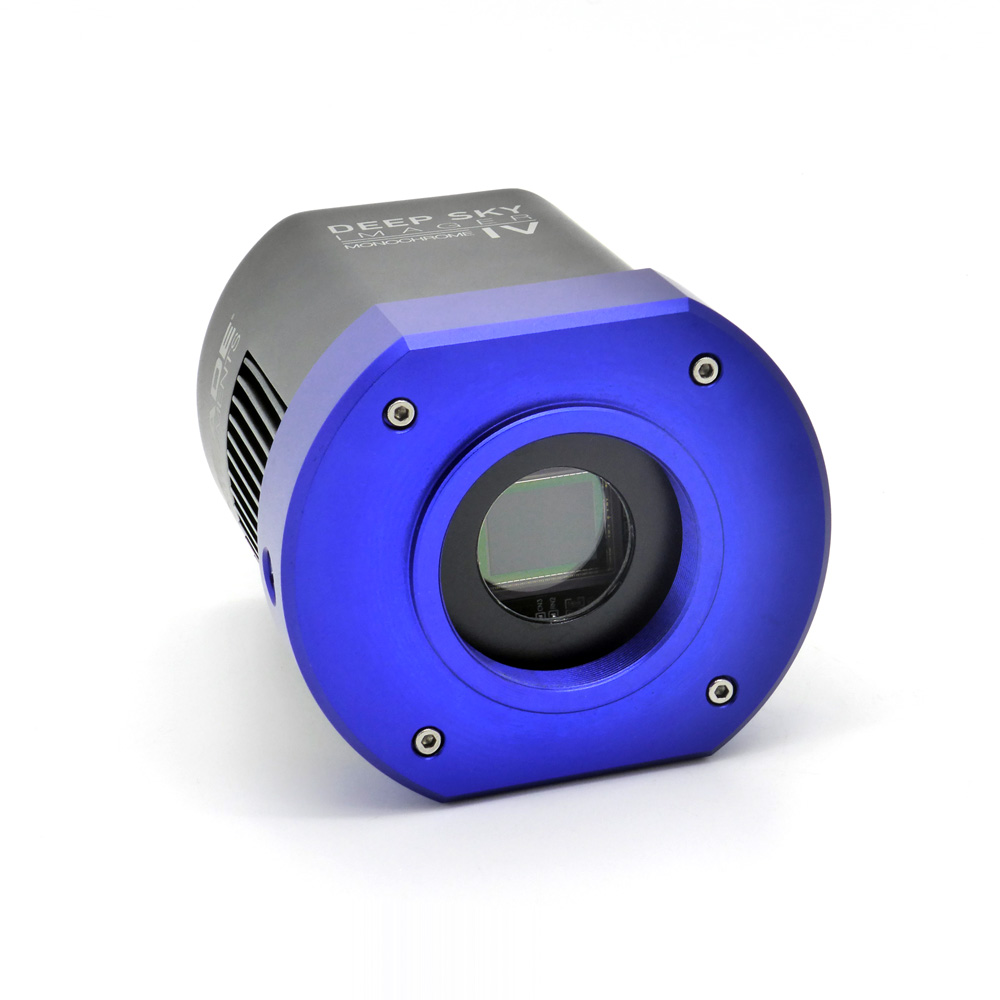

Meade DSI-IV Monochrome Camera

Computer controlled Deep Sky Imager IV (DSI-IV) for your telescope.

  • Panasonic MN34230 CMOS Monochrome
  • Sensor size: 4/3"
  • Resolution: 16 Mega pixels (4640 x 3506)
  • Thermo-electrically cooled (two-stage)
  • 23 frames/second at full resolution
  • Video and single-frame modes
  • ASCOM compatible
  • SkyCapture software
  • For Windows PC
  • UK warranty
Meade DSI-IV Monochrome Camera
  • Product code: 633002
  • Availability: Out of stock
  • Incoming: to be confirmed
  • Original Price: £ 1490.00
GBP £ 412.50 (GB VAT-free)
out of stock
Shipping rates
England & Wales
£ 10.00
Scotland Central & South
£ 10.00
Scotland North
£ 20.00
Northern Ireland
£ 20.00
UK islands (from)
£ 40.00
European Union (from)
£ 30.00
Worldwide (from)
£ 50.00

Description

Caution: When using any camera to image the Sun, always use appropriate solar filters.

The acclaimed Deep Sky Imager (DSI) camera series is back, and it’s more advanced than ever. Equipped with a 16MP Panasonic CMOS image sensor, regulated two-stage thermo-electric cooler, and 3.8µm pixels, the new DSI-IV is the ideal camera for all of your astrophotography pursuits. The low-noise, high-resolution and fast USB 3.0 readout make this camera suitable for both deep-sky and planetary imaging, making it one of the most versatile astronomy cameras available.

The DSI-IV offers immense value beyond the camera itself. It not only comes with its own high-quality, weather-resistant hard carrying case and AC power adapter, but we’ve included a new version of SkyCapture camera control software. With complete camera control, SkyCapture can run automatic image capture sequences without the need to purchase additional software. Capture high-quality images and video of galaxies, nebulae, and other beautiful objects of the night sky with Meade's DSI-IV.


U.K. WARRANTY

ADVANCED

COMPUTERISED

ASTRONOMY

PHOTOGRAPHY
▼ read more ▼

Minimum system requirements

  • Operating System: Microsoft Windows XP or later.
  • CPU Requirements: Equal to Intel Core2 2.8GHz or higher.
  • Memory & USB Port: 2GB or More. USB 3.0.
  • Access the latest updates from the SkyCapture software downloads on www.Meade.com in the support tab.

Package contents

  • DSI IV Monochrome Camera.
  • M42 to 2" Nosepiece.
  • AC Power Adapter with (UK & US plug).
  • USB 3.0 cable.
  • Desiccant plug.
  • Meade SkyCapture Software CD.
  • Hard carrying case.

Additional information

  • Built-in USB Hub: 2 x USB 2.0 Ports.
  • Power Supply: DC 5V over PC USB Port. External Power Adapter for Cooling System, 12V DC, 3A.
  • Software: Meade SkyCapture v2.1 or greater.
  • Product Weight: 690 grams (1.51 lbs).
  • Product Dimensions: 8.75cm x 8.16cm x 10.49cm.
  • Hard Carry Case Weight: 2.4kg (5.24 lbs).
  • Hard Case Dimensions with Camera & Accessories: 28cm x 23cm x 15cm (11.02" x 9.06" x 5.91")

Carries full one year UK warranty by Opticstar on behalf of Meade Instruments Corp.

Meade cameras.
▲ read less ▲
▼ show specification ▼
Meade DSI-IV Monochrome Camera
Attribute Specification
Meade Product Code (SKU) 633002
Universal Product Code (UPC) 709942999402
Warranty 1 year UK warranty by Opticstar on behalf of Meade Instruments
Experience Level Advanced
Sensor Panasonic MN34230
Optical Format • 4/3" CMOS monochrome sensor
• 21.9mm diagonal
• 17.6mm L x 13.3mm W
Resolution 16 Megapixels (4640 x 3506)
Pixel Size 3.8µm x 3.8µm
A/D Conversion 12-bit
Read Noise 1.2e @30db gain
Frame Rate 23 fps at full resolution in 8-bit mode (faster when subframed)
Maximum Cooling 40-45°C below ambient temperature
Shutter Electronic Rolling
Minimum Exposure Time 0.15ms
Maximum Exposure Time 3,600 sec
Mounting Type M42 x 0.75 or 2" Nosepiece
Interface Type USB 3.0 A-B type
Back Focus Distance 17.5mm
Image Format JPEG, BMP, FITS
Video Format SER, AVI
Binning 1x1, 2x2, 3x3
Spectral Range 350-1050nm (with Double Side AR Coating)
Operating Temperature -10C ~ 50C
Storage Temperature -20C ~ 60C
Operating Humidity 30% ~ 80%
Power Requirement • 5V DC over USB Bus Power
• External 12V DC 3A for Onboard Cooling Unit
Bundled software Meade SkyCapture; ASCOM compliant
Operating System Microsoft Windows (32-bit & 64-bit) XP/Vista/7/8/10/11
Contents • DSI IV Monochrome camera
• M42 to 2" Nosepiece
• AC Power Adapter (UK & US plug)
• USB 3.0 A-B type cable
• Desiccant plug
• Meade SkyCapture Software CD
• Hard carrying case
DSI-IV Camera Weight 690 grams (1.51 lbs)
DSI-IV Dimensions 8.75cm x 8.16cm x 10.49cm
Hard Carry Case Weight 2.4kg (5.24 lbs)
Hard Case Dimensions inc. Camera 28cm x 23cm x 15cm (11.02" x 9.06" x 5.91")
▲ hide specification ▲
